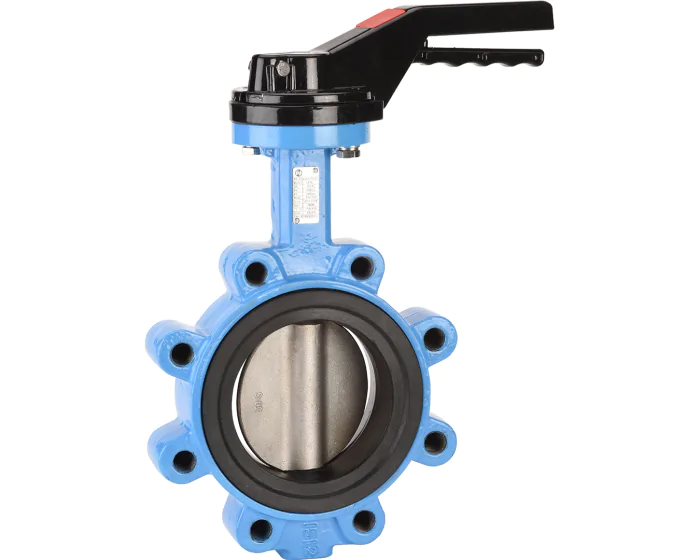

The 1176 threaded disc valve with high temperature EPDM seat, stainless steel disc, cast iron body, for alcohol, milk of lime, sea water, demineralised water, cold water
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | BS 5155 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 250.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 416 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 11 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 36.0 |
| Seat | EPDM HT |
| Body material | Ductile iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| TS max (°C) | 130 |
| TS min (°C) | -20 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Between flanges PN10/16 | 1176040 | S1009226 |
€35.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Between flanges PN10/16 | 1176050 | S1009227 |
€38.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Between flanges PN10/16 | 1176065 | S1009228 |
€49.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Between flanges PN10/16 | 1176080 | S1009229 |
€62.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Between flanges PN10/16 | 1176100 | S1009230 |
€77.03
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Between flanges PN10/16 | 1176125 | S1009231 |
€106.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Between flanges PN10/16 | 1176150 | S1009232 |
€133.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Between flanges PN10 | 1176200 | S1009233 |
€228.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Between flanges PN16 | 1176201 | S1009234 |
€228.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' Between flanges PN10 | 1176250 | S1009235 |
€363.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' Between flanges PN16 | 1176251 | S1009236 |
€363.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' Between flanges PN10 | 1176300 | S1009237 |
€507.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' Between flanges PN16 | 1176301 | S1009238 |
€507.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN350 - 14'' Between flanges PN10 | 1176350 | S1009239 |
€715.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN350 - 14'' Between flanges PN16 | 1176351 | S1009240 |
€715.10
(excl. btw)
|
add to cart |
